Analog PH Electrode Suitable For Water Purification >5μS/Cm

Name: Analog PH Electrode Suitable For Water Purification >5μS/Cm
Brand: Suzhou Delfino Environmental Technology Co., Ltd.
SKU: ASP121E
Price: 137.00 USD
Availability: InStock

সব পণ্য

পিএইচ ওআরপি বিশ্লেষক
(48)

পিএইচ ওআরপি কন্ট্রোলার
(39)

pH ORP সেন্সর
(92)

টার্বিডিটি অ্যানালাইজার
(54)

দ্রবীভূত অক্সিজেন বিশ্লেষক
(32)

পরিবাহিতা বিশ্লেষক
(49)

স্থির পদার্থ বিশ্লেষক
(25)

সিওডি বিশ্লেষক
(17)

ক্লোরিন বিশ্লেষক
(21)

ক্লোরোফিল বিশ্লেষক
(21)

নীল সবুজ শৈবাল পরীক্ষক
(17)

অ্যামোনিয়া বিশ্লেষক
(11)

পোর্টেবল বিশ্লেষক
(2)

জীবাণুনাশক বিশ্লেষক
(25)

মাল্টি প্যারামিটার বিশ্লেষক
(3)

পানির গুণমান বিশ্লেষক
(32)

শ্রেষ্ঠ পণ্য

NTC10K PH ORP সেন্সর

সাক্ষ্যদান

চীন Suzhou Delfino Environmental Technology Co., Ltd. সার্টিফিকেশন

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

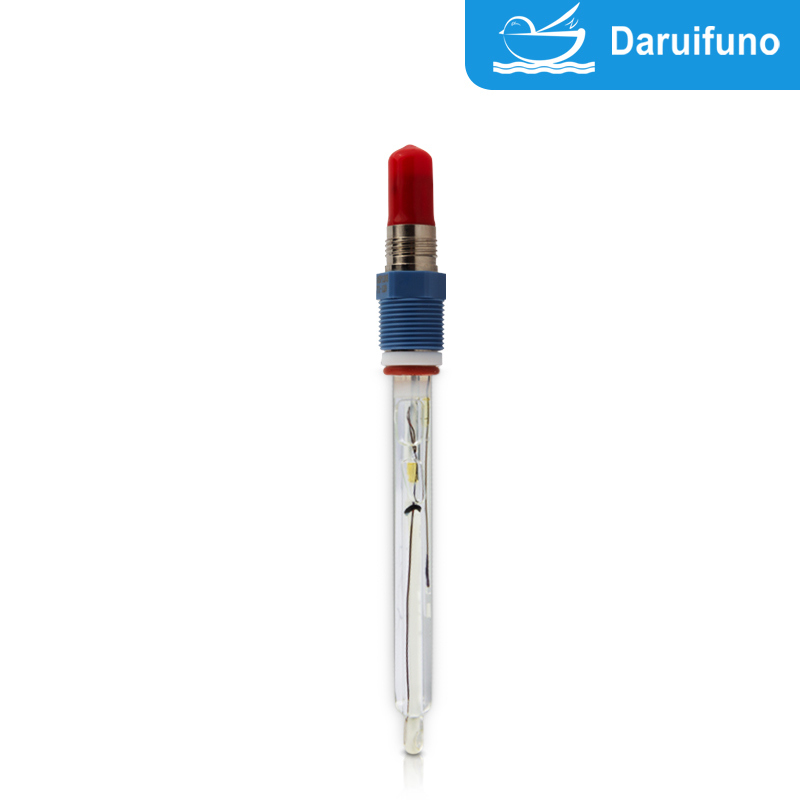

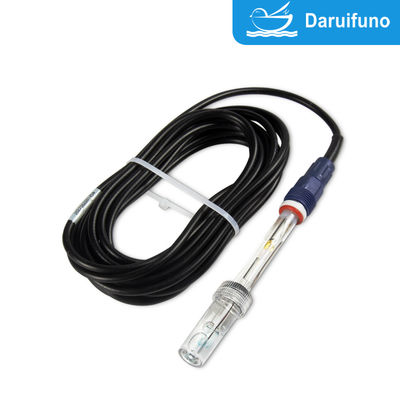

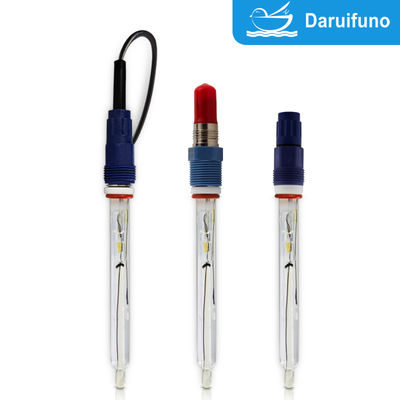

Analog PH Electrode Suitable For Water Purification >5μS/Cm

বড় ইমেজ : Analog PH Electrode Suitable For Water Purification >5μS/Cm

পণ্যের বিবরণ:

উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	Daruifuno
সাক্ষ্যদান:	CE, ISO
মডেল নম্বার:	ASP121E

প্রদান:

ন্যূনতম চাহিদার পরিমাণ:	1
মূল্য:	USD25-250
প্যাকেজিং বিবরণ:	কার্টন
ডেলিভারি সময়:	3-10 কাজের দিন
পরিশোধের শর্ত:	টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম
যোগানের ক্ষমতা:	প্রতি মাসে 10000 সেট

যোগাযোগ

Analog PH Electrode Suitable For Water Purification >5μS/Cm

বিবরণ

পণ্যের নাম:	পিএইচ সেন্সর	পরিমাপ পরিসীমা:	0~14pH
শূন্য (E0) পিএইচ:	± 0.25ph	Op ালু%:	＞ 95%
কাজের চাপ:	0-6 বার	ওয়ার্কিং টেম্প:	0~100℃
তাপমাত্রা ইউনিট:	PT100, PT1000, NTC10K কাস্টমাইজড	ইনস্টলেশন মাত্রা:	PG13.5
লেজ সীসা:	অবিচ্ছেদ্য বা বিভক্ত	তার:	স্ট্যান্ডার্ড 5 মিটার
আবেদন:	খাঁটি জল> 5μs/সেমি
বিশেষভাবে তুলে ধরা:	Analog pH electrode for water purification , pH sensor with >5μS/cm compatibility , ORP sensor for purified water

Analog PH Electrode Suitable For Water Purification >5μS/Cm

Daruifuno ASP121E Analog pH Sensor

The ASP121E pH sensor is a versatile and durable choice, engineered for a wide measuring range of 0 to 14 pH. It utilizes a low-impedance cylindrical glass membrane to deliver fast and stable readings.

Precision and Longevity

A key feature is its sophisticated Ag/AgCl reference system. This design incorporates a double salt bridge and a KCl gel electrolyte, significantly extending the sensor's lifespan and ensuring reliable performance in challenging environments where conventional single-junction electrodes often fail.

Built for Reliability and High Performance

Constructed with durability in mind, the electrode features a resilient glass body and a distinctive dot-shaped ceramic junction (frit), offering excellent resistance to chemical corrosion.

Operating Parameters

Standard Operation: 0°C to 80°C with pressures up to 6 bar
High-Temperature Capability: Up to 100°C for less than 60 minutes at pressures up to 3 bar
Customizable High-Temperature Model: Continuous use up to 100°C or short-term spikes up to 135°C (less than 60 minutes)

Key Technical Specifications

Sensitivity (Slope): Greater than 95%
Zero Point (E0): ±0.25 pH
Temperature Compensation: PT100, PT1000, or NTC10K sensors
Optimal Flow Rate: 0.001 m/s to 0.5 m/s
Physical Specifications: 12 mm diameter * 120 mm length (customizable)
Installation: Standard PG13.5 mounting thread
Wiring: Integral or split leads available

Model Specifications

Model	ASP120E	ASP121E	ASP122E	ASP123E	ASP124E
Measuring Object	PH
Measuring Range	0~14pH
Indicator Electrode	low impedance cylindrical glass membrane
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass+Dot-shaped ceramic hole	Glass+Dot-shaped ceramic hole	Glass+Dot-shaped ceramic hole	Glass+Porous tetrafluoro ring	Glass+ceramic sand core
Working Pressure	Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar
Working Temp.	Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.)
Sample Flow Rate	0.5 m/s ≥ flow velocity ≥ 0.001 m/s
Zero (E0)	±0.25pH
SLOP%	＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: diameter 12mm/Length 120mm (customized)
Installation Thread	PG13.5
Tail Lead	Integral or split
Application	Strong acid and alkali	Normal temp. pure water >5μS/cm	Harsh industrial process*	Normal temp. desulfurization or viscous slurry	Hydrofluoric acid with concentration ≤4000ppm

Model	ASP125E	ASP126E	ASP127E	ASR120E	ASP128E
Measuring Object	PH	PH	PH	ORP	PH
Measuring Range	0~14pH	0~14pH	0~14pH	±2000mV	0~14pH
Indicator Electrode	low impedance cylindrical glass membrane	low impedance cylindrical glass membrane	low impedance cylindrical glass membrane	Platinum	glass membrane
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass+ceramic sand core
Working Pressure	Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar			max. 0~6bar
Working Temp.	Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.)			-15~80℃, continuous work
Sample Flow Rate	0.5 m/s ≥ flow velocity ≥ 0.001 m/s
Zero (E0)	±0.25pH
SLOP%	＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: diameter 12mm/Length 120mm (customized)
Installation Thread	PG13.5
Tail Lead	Integral or split
Application	Strong acid and alkali	Harsh conditions &high pollution	Fermentation process	High temp. Industrial process	Low temp.

Features & Advantages

Large capacity reference for extended service life
Optional cleaning connector for underwater maintenance
Available with PTFE protective cover and self-cleaning interface
Self-cleaning function enhances stability, accuracy, and reliability
Reduces maintenance costs
Ideal for Pure Water >5μS/Cm

Mounting Flexibility

Sidewall Mounting: Ideal for large tanks and vessels
Top Flange Mounting: Perfect for sealed reactors
Pipe/Flow Cell Mounting: For in-line measurements
Submersible Mounting: For open tanks and channels
Manual Retractable Holder: Enables maintenance without process shutdown

Enhanced Durability with PTFE Sheath

The optional PTFE (Teflon) sheath features 3/4" NPT threads for easy attachment to mounting accessories, ensuring seamless integration across various applications.

Application For Pure Water >5μS/Cm
